7PXR 7-Channel 2.4GHz T-FHSS Radio System w/ R334SBS Receiver
Transmitter Specifications:
-2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
-T-FHSS SR/T-FHSS/S-FHSS/FASST-C2
-Ni-MH NT5F1800B (6 V)
-LiFe FT2F1700BV2 (6.6 V)
-350 mA or less (When the T-FHSS, Vibration off, back lighting on)
*When you turn on your 7PXR, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.
Receiver Specification:

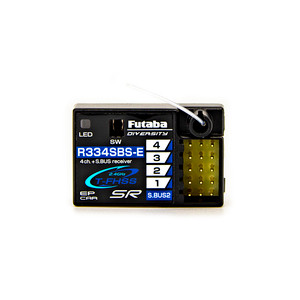

-Receiver R334SBS
-Size: 1.33 in x 0.88 in x 0.44 in (33.9 mm x 22.3 mm x 11.3 mm)
-Weight: .26oz (7.5g)
-Operating Voltage: DC 3.7V-7.4V
Includes:
-T7PXR Transmitter
-R334SBS
-Dry Battery Holder
-Wheel Offset Adapter
-Wheel Adapter 32deg
-Large Diameter Steering Wheel (54 mm)
-Trigger Brake Lever (Narrow Type)
-Miniature Screwdriver
-Screen Protector
-3 x Receiver Plugs
Features:
T7PXR has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
In addition to the T-FHSS telemetry system, we added a T-FHSS SR (Super Response) system that increased processing speed to further improve response. (SR system does not support telemetry function.)
Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.
Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.
It is possible to update the T7PX itself in the future by NFC communication.
A switch with both dial (DL1) and pus switch (PS6) functions.
Brake mixing of the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently.
This function can be used with crawlers and other 4WS type vehicles.
The sensitivity of Futaba car rate gyros can be adjusted from the T7PXR.
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.
This dedicated function allows you set up the Link software so that your T7PXR can control variable frequency and other data changes in Futaba speed controllers (ESCs): MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc.
